A guide to Database Isolation level

This post is a quick guide to MySQL Isolation level, but the same concept can still be applied to other relational databases. Think of this post as a quick reference to refresh your memory.

I wrote this post based on my own conceptual understanding of the topic, if you notice any mistakes or have any suggestions for improvement, feel free to leave a comment or contact me directly. I will be happy to update the post accordingly.

0. Introduction

The Isolation level (I in ACID) is the setting that fine-tunes the balance/trade-off between performance and reliability, consistency when multiple transactions are performing queries simultaneously.

From highest amount of consistency and protection to the least, the isolation levels supported by MySQL InnoDB are: SERIALIZABLE, REPEATABLE READ (default), READ COMMITTED, and READ UNCOMMITTED.

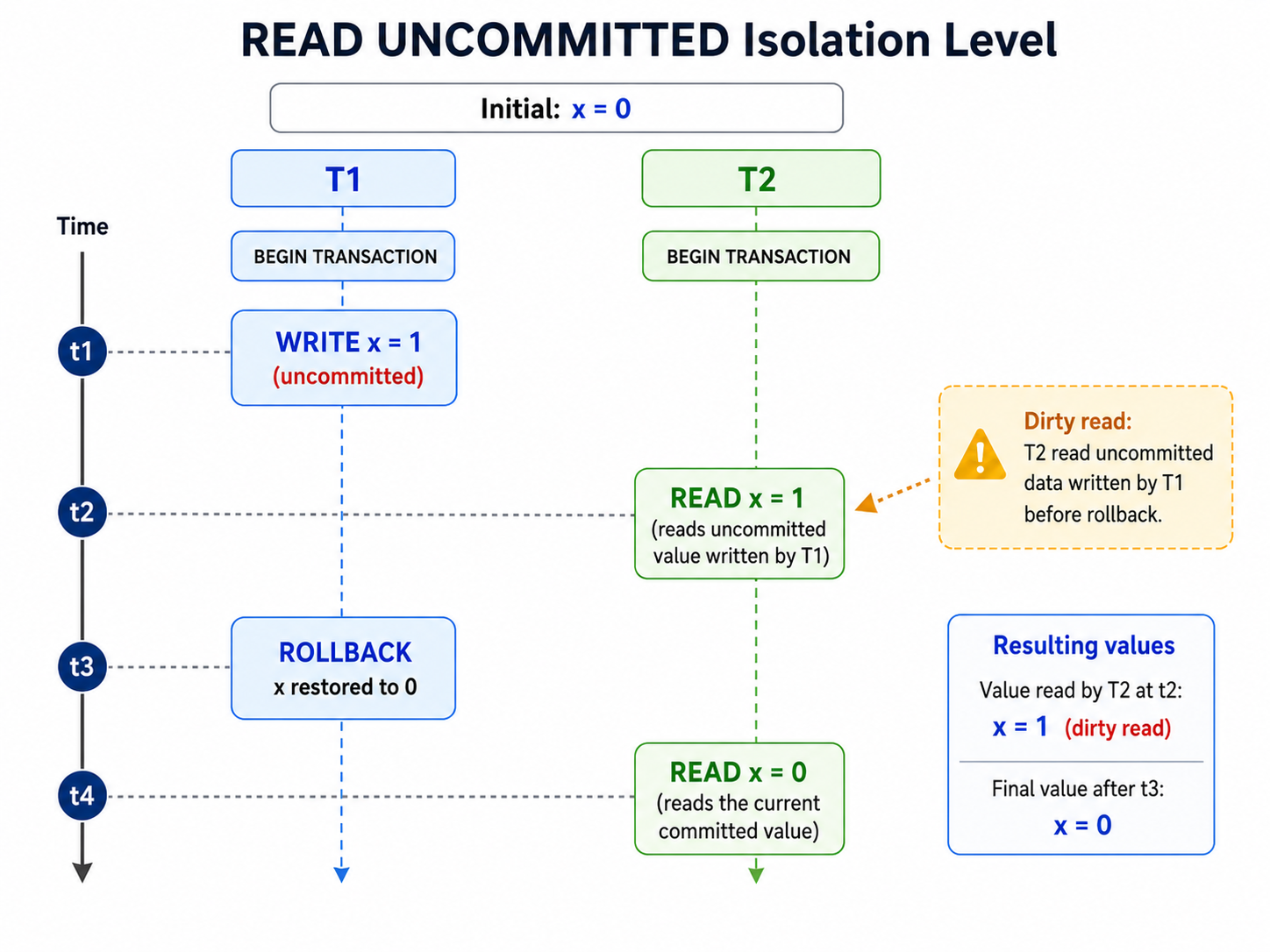

1. READ UNCOMMITTED

In this mode, a transaction is allowed to READ UNCOMMITTED data from other transactions. This is the lowest isolation level, and it can lead to DIRTY READS (visible uncommitted changes) and other anomalies that we will cover in the next sections.

2. READ COMMITTED

A transaction can only READ COMMITTED data from other transactions. This prevents DIRTY READS, but it can still lead to:

• NON-REPEATABLE READS (data can change between reads in the same transaction).
• PHANTOM READS (#rows changed between 2 reads in the same transaction).

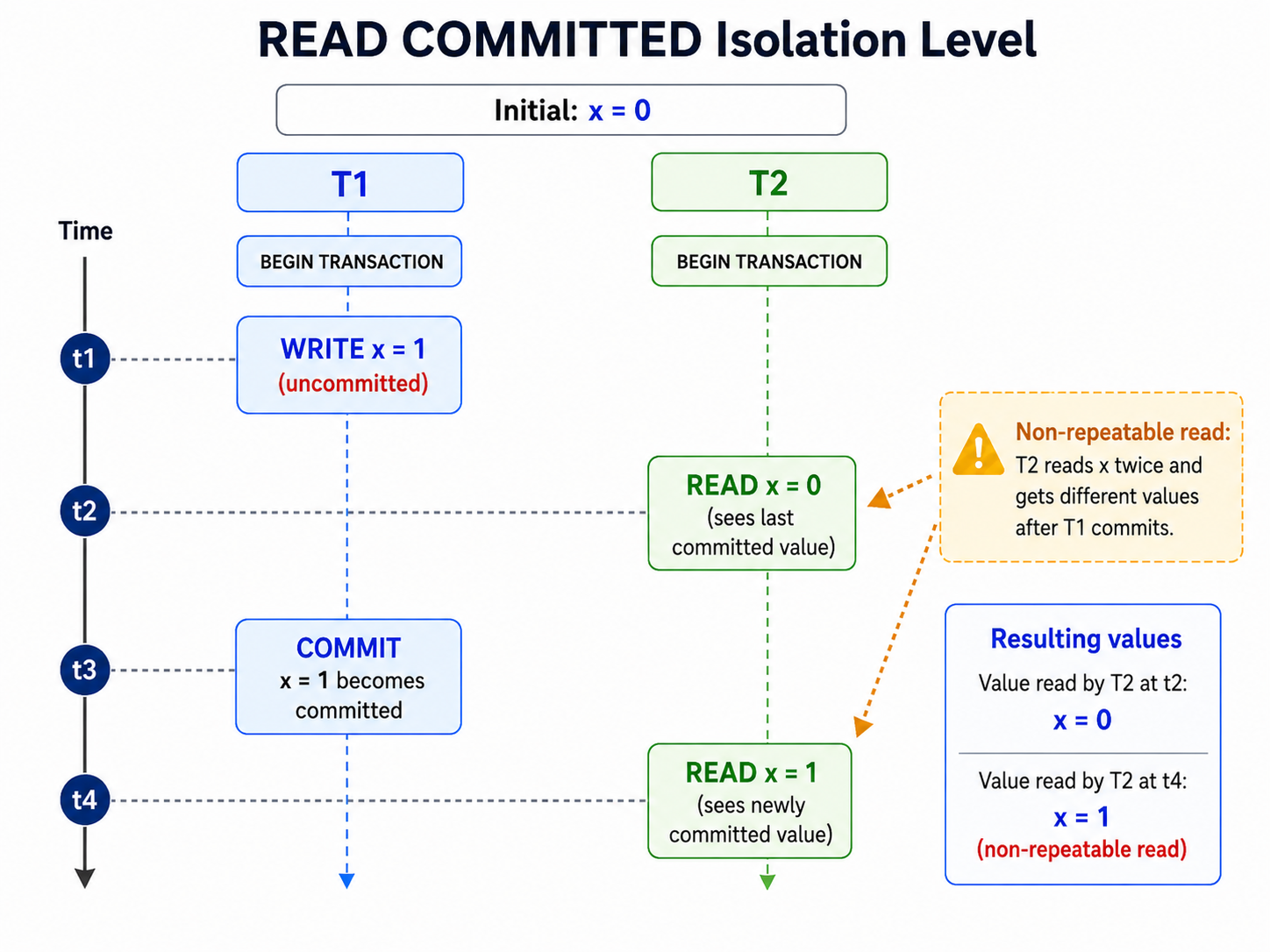

This example illustrates the NON-REPEATABLE READ phenomenon, but similar logic can be applied to phantom reads:

How MySQL implements READ COMMITTED?

MySQL takes a “snapshot” (latest committed data) of the database’s current state for each query in a transaction.

When a transaction reads data, it accesses the snapshot instead of the source table. A snapshot is refreshed and synced with committed data for subsequent queries within the same transaction. For example Tx1 COMMIT could refresh the snapshot for Tx2, and Tx2 will see the changes made by Tx1, just like the diagram above.

3. REPEATABLE READ

TLDR, REPEATABLE READ:

• Prevents NON-REPEATABLE READs by reusing the snapshot created by the transaction’s first plain SELECT. Rows committed by other transactions afterward remain invisible to this transaction.
• Prevents phantom reads by using gap locks and next-key locks for range scans.
• But there are edge cases

Compare to READ COMMITTED, there are 2 main differences at this level: (1) when does snapshot refresh? (2) locking strategy.

(1) Snapshot refresh

In this mode, a snapshot is taken at the transaction’s first read.

Transaction only sees 1 snapshot at its first read, and that snapshot is used for all subsequent reads within that transaction. ==> This ensures consistent subsequent READs throughout the transaction’s execution and avoids NON-REPEATABLE READS.

(2) Locking strategy

Under READ COMMITTED, InnoDB uses record locks for locking: it locks index records but generally does not lock the surrounding gaps. Because gaps remain unlocked, another transaction can insert a new row into the searched range, allowing phantom reads.

Meanwhile, REPEATABLE READ adds gap locks and next-key locks for range scans. I covered these in detail here MySQL locks post.

Basically, when a transaction executes a locking range operation (e.g., SELECT ... FOR UPDATE, UPDATE, or DELETE), InnoDB locks the scanned index range using next-key or gap locks. This prevents other transactions from inserting new rows and therefore prevents phantom reads.

-- Tx1
BEGIN;
SELECT * FROM users WHERE age BETWEEN 20 AND 30 FOR UPDATE;

-- Tx2: waits if age = 25 falls inside Tx1's locked index range
INSERT INTO users(age) VALUES (25);

Edge Case: Mixing Snapshot Reads and Current Reads

Under REPEATABLE READ, plain SELECT statements use a fixed MVCC snapshot, while write operation like UPDATE and DELETE operate on the latest committed version of the data directly.

-- Tx1
BEGIN;
SELECT * FROM users WHERE age = 25; -- Returns 0 rows; snapshot is established.

-- Tx2
INSERT INTO users(age) VALUES (25);
COMMIT;

-- Tx1
UPDATE users SET status = 'active' WHERE age = 25; -- Affects 1 row.
SELECT * FROM users WHERE age = 25; -- Returns 1 row; Tx1 can now see its own modification.

Although Tx1’s snapshot cannot see the row inserted by Tx2, the UPDATE uses the latest committed data (bypassing its snapshot), so it can find and modify the newly committed row. Note that the UPDATE statement does not refresh the snapshot, but Tx1 can see its own modification afterward.

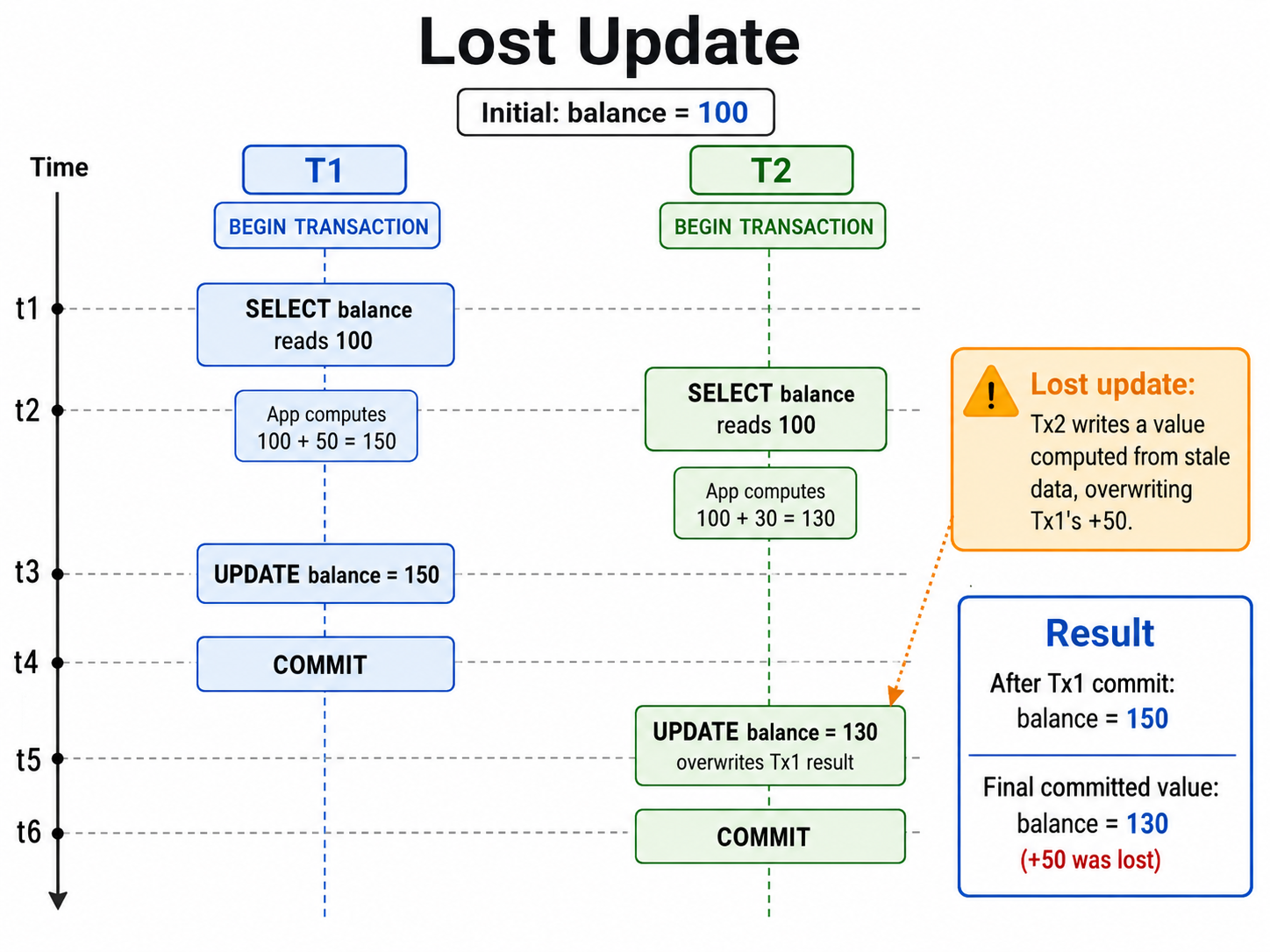

Lost Update problem

This problem occurs when applications use a read-modify-write pattern instead of performing the modification atomically in the database.

For example, 2 transactions can read the same data, update it in its own memory, and write back to the database. The 2nd transaction wins and overwrites the first transaction’s update, resulting in a LOST UPDATE.

So how to prevent this? There are 2 approaches:

• Pessimistic locking: use SELECT ... FOR UPDATE to lock the row before reading it. This prevents other transactions from modifying the row until the transaction is committed or rolled back.
• Optimistic locking: use a version column to detect if the row has been modified by another transaction before updating it. If the version number has changed, the transaction can abort or retry.
  • In implementation, the version should be compared between client’s data vs the database’s data (etags or if-match HTTP pattern).

4. Serializable

This level is like REPEATABLE READ, but InnoDB implicitly converts all plain SELECT statements to SELECT ... FOR SHARE (shared locks). The exact locks depend on the query:

• UNIQUE index lookup: acquires a shared record lock on the found row.
• Range or NON-UNIQUE index scan: acquires shared next-key locks over the scanned index range.

Shared locks allow concurrent reads, but conflicting writes must wait. Next-key locks also prevent new rows from being inserted into the protected gaps.

As a result, SERIALIZABLE prevents dirty reads, non-REPEATABLE READs, phantoms, and typical lost-update patterns.

The trade-off is lower concurrency and potential deadlocks. Therefore in practice, applications often remain on REPEATABLE READ and use targeted SELECT ... FOR UPDATE queries where serialization is required to reduce locking scope.

Summary

Key takeaways:

• Isolation level is fundamentally a trade-off between consistency and performance ⇒ higher isolation means more locking, less throughput.

• READ UNCOMMITTED
  • best performance, lowest isolation level. It can lead to DIRTY READS and other anomalies.
• READ COMMITTED
  • Use snapshot mechanism: prevents DIRTY READS, but it can still lead to NON-REPEATABLE READS and PHANTOM READS.
• REPEATABLE READ (InnoDB default)
  • Blocks the most common anomalies (dirty read, non-REPEATABLE READ, phantom read on locking scans) while still being reasonably concurrent.
  • Beware for Mixing Snapshot Reads and Current Reads: plain SELECT reads the snapshot, UPDATE/DELETE/SELECT ... FOR UPDATE read the latest committed data.
  • Lost updates problem: Use pessimistic or optimistic locking to prevent this.
• SERIALIZABLE
  • Gives strongest data consistency, but trades off performance, hence reach for targeted SELECT ... FOR UPDATE on REPEATABLE READ instead.

References

• MySQL ACID
• A straightforward guide for isolation levels
• MySQL locks: A quick guide
